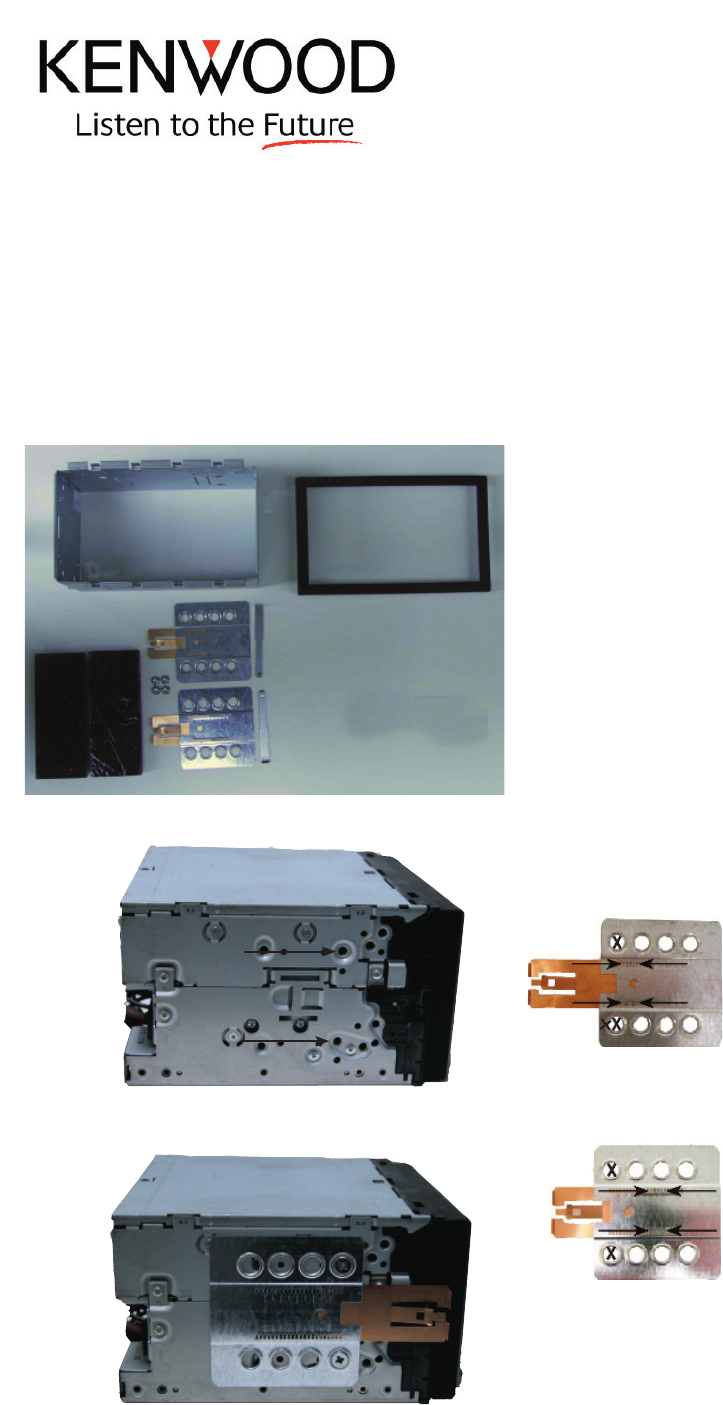

2-DIN CAW-1270-00
Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion
Installation manual for:
Saab 9.5 9 - 1997 --> 10 - 2005
* Mount the plates.
Use this hole
Use this hole
Kenwood DDX6029
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 4 & 6 marked with an arrow.
Measured from left to right.
Kenwood DDX 7025
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow
Measured from left to right.
Page view 0
1 2

Summary of Contents

Page 1 - 2-DIN CAW-1270-00

2-DIN CAW-1270-00Installation kit includes the following items:* 1X 2-ISO 110 mm. metal bracket * 1X Replacement panel* 2X Mounting plates * 2X Moun

Page 2 - 2-DIN 12.301270-00

1 2 3 4 Remove radio using radio removal keys. Remove the original radio bracket. At the location of the arrows. On th
